| Place of Origin: | GUANGZHOU |
|---|---|
| Brand Name: | Wakestone |
| Minimum Order Quantity: | negotiable |
| Price: | negotiable |
| Packaging Details: | standard packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Week |
| Applicable Industries: | Construction , Mining | Length: | 3710/3618/3200 Mm |
|---|---|---|---|
| Tool Diameter: | 155MM | Applicable Excavator: | 10-15 Ton |
| Part Name: | Hydraulic Breaker Hammer | Place Of Origin: | Guangdong, China |
| Highlight: | Longer Piston Stroke Hydraulic Hammer,Excavator Hydraulic Hammer,3200 mm Hydraulic Hammer |
||

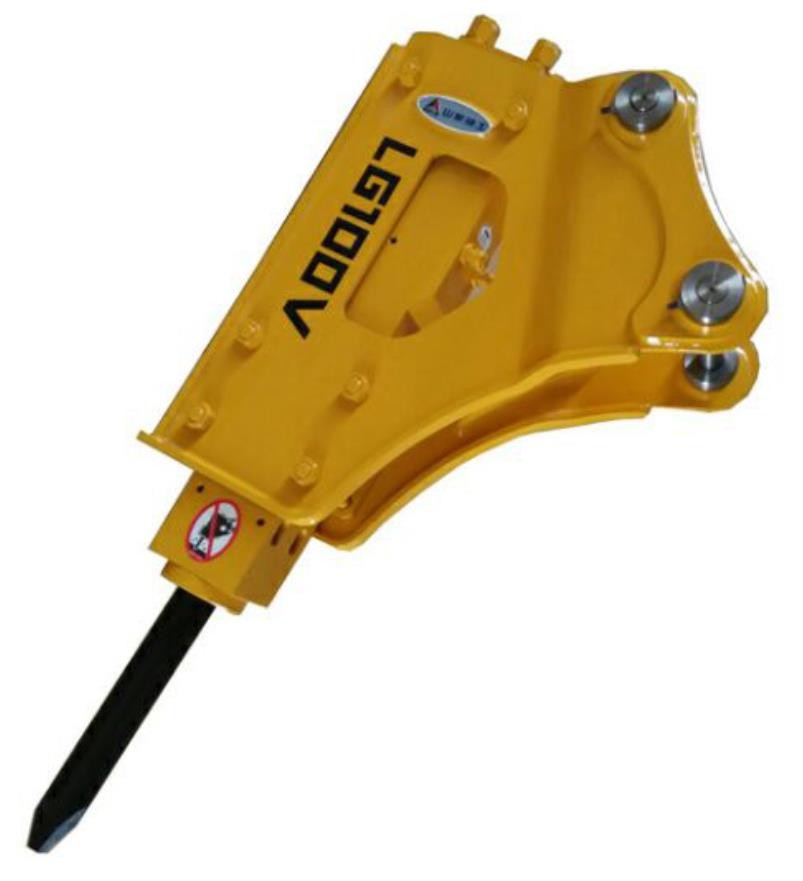

hydraulic breaker hammer for cat 330 excavator for sale reliable quality longer working life
hydraulic breaker hammer have following features:
1. Track-able raw material, we make exact instruction to purchase department to source from fixed good quality steel material factory.And the hydraulic breaker material should be track-able from the beginning.
2. Producing with batch parts orders, all the mini excavator hydraulic breaker parts we are producing with fixed standard drawing, forbidding casual producing to keep all the parts are standard after inspected.
3. Every mini excavator hydraulic breaker main body should be impact tested before the final delivery to make sure it can work immediately while the user get it installed.
4. Overseas sales and service branch for quick mini excavator hydraulic breaker parts service wanted by users.
5. Successful mini excavator hydraulic breaker distributor support policy including financial, sales and training service.
The hydraulic breaker is used for breaking or demolition.The power should be the first thing we should think about.
a. max power hydraulic breaker is designed with pneumatic and hydraulic power driving together. The quick inflated power can enlarge the piston impacting power obviouslly.
b. The precision tolerance control between piston and cylinder can make sure minimum hydraulic power loss while the piston moving in the cylinder before impacting the tool head.
c. Choosing good material for piston, cylinder,seal kits is also making the minimum hydraulic power loss while piston moving.
d. Longer piston stroke design is also a feature whick makes bigger impact power than others.
e. Accumulator device can collect more power for next impacting meanwhile protecting the excavator hydraulic system
hydraulic breaker hammer for CAT 330 exvacator models and specifications:
| Model | Unit | FB155 |
| Tool Diameter | MM | 155 |
| Weight of Main Body | KG | 1157 |
| Operation Weight | KG | 2629 |
| Impact Rate | Bpm | 300-450 |
| Operating Pressure | Bar | 160-180 |
| Required Oil Flow | L/Min | 170-230 |
| Hose Diameter | Inch | 1 1/4 |
| Excavator Weight | Ton | 29-33 |
hydraulic breaker Standard Package:
(1) Two demolition moil tools
(2) Two In/Out hoses
(3) One Repair Seal Kits
(4) One tool Box
(5) One Gas Bottel
(6) One set gas charge kits
Service Introduction:
1. Pre-Sales Service
2. Order Service
3. After-sales Service
