Detail Information

Condition:	New, 100%new	Color:	Yellow
Applicable Industries:	Construction	Application:	Hydraulic Breaker
Core Components:	PLC, Gearbox
Highlight:	15 Tons Hydraulic Breaker Hammer , 200mm Hydraulic Breaker Hammer , 100mm Hydraulic Breaker Hammer

Product Description

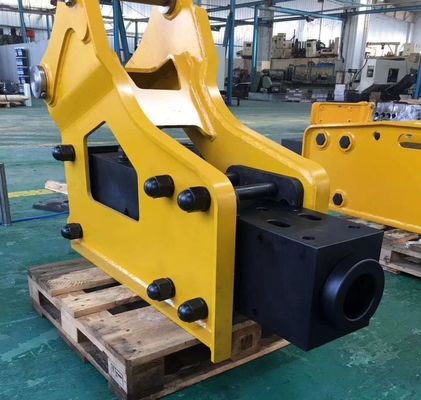

100mm 150mm 200mm 15 Tons Hydraulic Breaker Hammer For Mini Excavator

Damage-Resistant Material

Extending Undercarriage

Safety Frame

Simple Control

Seasy Maintenance

Versatility

Extending Undercarriage

FEATURE & BENEFITS

• Quick and easy to install. Flexible operation with wide vision for cost saving and higher efficiency operation.

• Noisier than the Silent type but less in overall weight that makes it easier to use for positioning, suitable for mining work. • With best design, manufactured by least number of components, with fewer accessories, lower faults and easy to maintain.

Our Advantages

1. Long warranty period --12 months warranty

2. Special material : durable and longer service life, --40CrNiMo,42CrMo,20CrNiMoA etc

3. High precision accessories and reduce wear and tear.

4. Heat treatment and subzero treatment to reduce the deformation and not easy scratched

5. Suitable excavator:DOOSAN,SANY,KOBELCO,CAT,KOMATSU,HITACH,VOLVO,HYUNDAI etc.

1. Through bolt : The fronthead, the cylinder and the back head of the main body are tightly fixed with four through bolts.

2. Valve : The cylinder compensates for pressure in the hydraulic circuit piston reciprocation.

3. Piston : Kinetic energy of the piston is converted into hammering energy after hitting the chisel. the raw

material:20CrNiMoA(best),35CrNiMoA,40CrNiMoA, and other suppliers use the only GCr15 to decrease the cost.

4. Main Body : Including Fronthead, cylinder and back head. Ensure your breaker will be in best perfomance

5. Chisel : The specially heat treated chisel is directly applied to break rocks.

There are four types for choosing : Moilm,Blunt,Flat,Conial Point. The material is 42Crmo.

6. Ring Bush & Front Cover : Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacture; forging again and again to make forming,to make internal

organization more tight, and increase products'wear-resistance.

7. Seal Kit : We can supply both Parker and seal kit which are most famous brand in the bussines line.

PRODUCT SPECIFICATIONS

model	total weight	length	diameterof tool	suitable carrier
unit	kg	mm	mm inch	ton
FB100	53 117	918/1086/1190	10 1.57	0.8-2.5
FB200	71 156	1090/1235/1331	45 1.77	1.2-3.0
FB300	89 196	1178/1344/1417	53 2.08	2.5-4.5
FB400	156 343	1373/684/1660	68 2.68	4-7
FB400A	165 363	1373/1684/1660	68 2.68	4-7
FB430	214 471	1515/1706/1712	75 2.95	6-9
FB435	215 473	1630/1738/1717	75/80 2.95/3.15	6-9
FB435A	225 295	1630/1738/1717	75/80 2.95/3.15	6-9
FB450	282 620	1735/2120/2074	85 3.35	7-14
FB450A	301 662	1735/2120/2074	85 3.35	7-14
FB800	479 1054	1994/2387/2354	100 3.94	10-15
FB800A	503 1107	1994/2387/2354	100 3.94	10-15
FB1600	620 1364	2285/2673/2578	125 4.92	15-18
FB2000	850 1870	2423/2900/2847	135 5.31	18-26
FB2000F	846 1861	2427/2656/2646	135 5.31	18-26
FB2200	920 2024	2480/2866/2793	140 5.51	18-26
FB2200A	956 2103	2480/2866/2793	140 5.51	18-26
FB3000	1092 2402	2640/2897/3002	150 5.91	27-35
FB4500	1960 4300	3184/3812/3723	175 6.89	35-40
FB8000	2663 5842	3420/4021/-	195 7.68	45-60

Our service:

1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at yourservice
4. OEM Service available
5. We can offer pick up service if clients come to visit our workshop

Tag:

Place of Origin:	GUANGZHOU
Brand Name:	Wakestone

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	standard packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 Piece/Pieces per Week
