High Ductility Excavator Vibratory Pile Hammer wear resistance Amplitude 14mm

Basic Information
Place of Origin: CHINA
Brand Name: Wakestone
Certification: CE,ISO
Model Number: JSP40
Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 5-7 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per year
Detail Information
Amplitude: 14 Mm Motor Quantity: Two
After Sakes Service: 1 Year Main Body Weight: 2900 Kg
Condition: 100% New Package: Export Wooden Cases Or As Request
High Light:

High Ductility Excavator Vibratory Pile Hammer

,

Wear Resistance Excavator Vibratory Pile Hammer

,

14mm Vibrating Pile Hammer


Product Description


Construction Parts Hydraulic Vibrating Steel Pile Hammer For PC400 Excavator


The efficiency of vibrating pile hammer is much higher than other piling machine. Excavator mounted vibrating pile hammer can be applied to steel sheet pile, steel pipe pile and long slender concrete pile within 8 meters. The vibrating pile hammer is most suitable for working in sand, water and poorer effect in the clay which must choose higher power machines.


Features

1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
6.  Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.

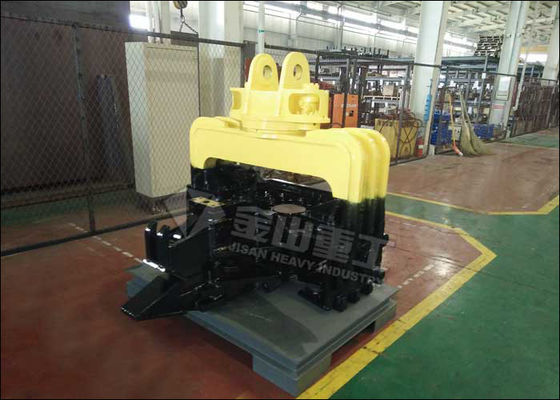

High Ductility Excavator Vibratory Pile Hammer wear resistance Amplitude 14mm 0


Parameter


ItemModel Unit JSP20 JSP40
Eccentric Moment Nm 40 85
Frequency rpm 2800 2800
Centrifugal Force KN 300 570
Amplitude mm 6.8 14
Working Pressure bar 280 300
Oil Flow L/min 155 255
Max Turning degree 270 270
Weight Main Body kg 2080 2940
Extension Boom kg 740 1070
Total weight kg 2900 4100
Applicable Excavator Ton 20-30 35-50



Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.


High Ductility Excavator Vibratory Pile Hammer wear resistance Amplitude 14mm 1


Company Introduction

JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
