| Place of Origin: | China |
|---|---|
| Brand Name: | Wakestone |
| Certification: | CE,ISO |
| Model Number: | JS20S |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Sets per month |
| Crushing Force: | 95 Ton | Warranty: | 12 Months |
|---|---|---|---|
| Carrier: | 18-24ton | Color: | Yellow Or As Request |
| Application: | Building Demolition, Concrete Crushing | Type: | Hydraulic Rotating Pulverizer |
| Highlight: | 95 Ton Excavator Pulverizer Attachment,360 Degree Rotating Excavator Pulverizer Attachment,360 Degree Rotating Hydraulic Pulverizer |
||

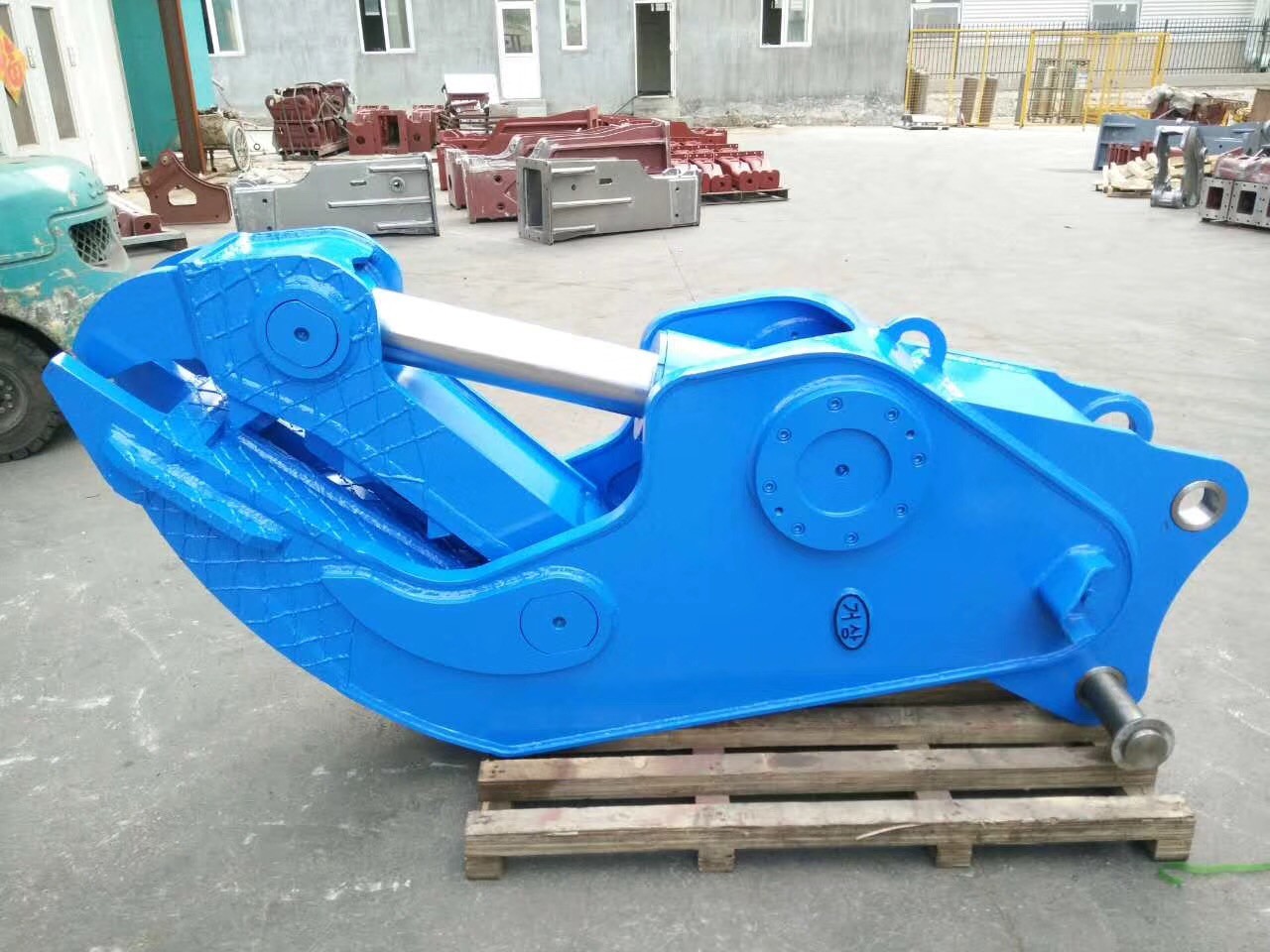

Big Jaw Tooth Hydraulic Demolition Pulveriser Price For Kobelco Excavator SK200
Introduction
Crushing forceps can be excellent to complete a series of operations including separating reinforcing steel from concrete block, bending and loading into the trucks, which obviously improved the working efficiency.
Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
Features
1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project
Parameter
| Item/Model | Unit | JS15S | JS20S | JS25S | |
| Suitable Excavator | T | 15 | 18-24 | 35 | |
| Weight | Kg | 1320 | 1500 | 1750 | |
| Opening Width | Mm | 620 | 760 | 900 | |
| Depth | Mm | 700 | 830 | 1000 | |
| Height | Mm | 2060 | 2250 | 2620 | |
| Width | Mm | 450 | 530 | 620 | |
| Length | Mm | 1050 | 1340 | 1580 | |
| Rated Pressure | Kgf/cm2 | 320 | 320 | 320 | |
| Rated Flow | Lpm | 230 | 240 | 260 | |
| Crushing Force | Middle | Ton | 80 | 95 | 120 |
| Tip | Ton | 40 | 50 | 65 | |
| Cycle Time | Open | Sec | 2 | 2.5 | 2.8 |
| Close | Sec | 2.1 | 2.2 | 2.5 | |
Application
· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing
Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Service
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic pulverizer, beyond the warranty period, all spare parts offered to you with our cost price.
