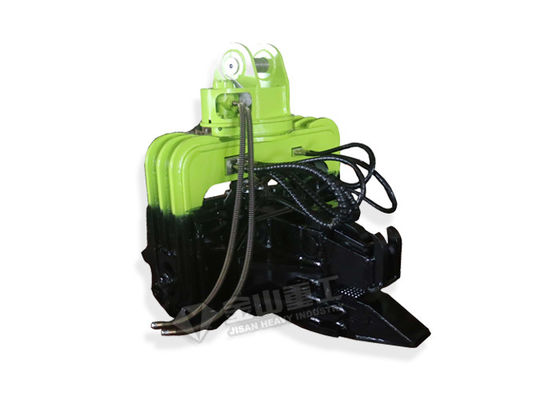

280 Bar Hydraulic Sheet Pile Driver Doosan DH300 Excavator Vibro Hammer

280 Bar Hydraulic Sheet Pile Driver Doosan DH300 Excavator Vibro Hammer

MOQ: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Standard Packaging: Export Wooden Cases or pallets
Delivery Period: 5-7 Workdays
Payment Method: L/C, T/T, Western Union
Supply Capacity: 1000 Sets per year
Detail Information
Place of Origin
CHINA
Brand Name
Wakestone
Certification
CE,ISO
Model Number
JSP20
Working Pressure:
280 Bar
Motor:
Imported Motor
Composition:
Assistant Hand,main Body, Clip Mouth
Excavator Weight:
20-30 Ton All Brand Excavator
Service Time:
12 Months
Power:
Hydraulic Power
Highlight:

280 Bar Hydraulic Sheet Pile Driver

,

Excavator Hydraulic Sheet Pile Driver

,

Doosan DH300 Excavator Vibro Hammer

Product Description


Hydraulic Sheet Pile Driver Vibro Hammer For Doosan DH300 DH330 Excavator


Operating Principle
Exciting force is proportional to the eccentric shaft size and the vibration times square. JISAN eccentric shafts are all made after a detailed calculation and test which can combine strong vibration force and material properties, not only can meet the needs of the work but also guarantee the mechanical reliability.

Features

1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.


280 Bar Hydraulic Sheet Pile Driver Doosan DH300 Excavator Vibro Hammer 0

Parameter



ItemModelUnitJSP20JSP40
Eccentric MomentNm4085
Frequencyrpm28002800
Centrifugal ForceKN300570
Amplitudemm6.814
Working Pressurebar280300
Oil FlowL/min155255
Max Turningdegree270270
WeightMain Bodykg20802940
Extension Boomkg7401070
Total weightkg29004100
Applicable ExcavatorTon20-3035-50


 280 Bar Hydraulic Sheet Pile Driver Doosan DH300 Excavator Vibro Hammer 1

Application

hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.

 280 Bar Hydraulic Sheet Pile Driver Doosan DH300 Excavator Vibro Hammer 2


Company Introduction

Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.

After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
