Beijing Silk Road Enterprise Management Services Co.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE,ISO |
| Minimum Order Quantity: | 1.00 |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Main Body Weight: | 2080 Kg | Extension Boom Weight: | 740 Kg |
|---|---|---|---|
| Composition: | Assistant Hand,main Body, Clip Mouth | Suitable Excavator: | 20-30 Ton All Brand Excavator |
| Service Time: | 12 Months | Power: | Hydraulic Power |
| High Light: | 2080Kg Excavator Mounted Pile Driver,Hydraulic Excavator Mounted Pile Driver,Excavator Hydraulic Pile Hammer |
||

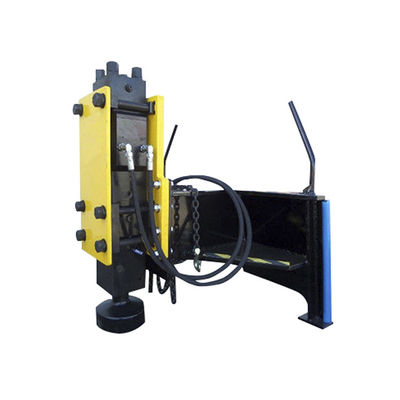

Excavator Mounted Hydraulic Steel Pile Driver Machine For 12 Meter Sheet Pile
Features
1. Hydraulic Motor driven turntable
2. Ventage
3. Adopts highly efficient imported damping rubber block
4. Adopts original imported hydraulic motor
5. Powerful hydraulic cylinder,Super durable tooth piece
6. Precision oil system
7. Well designed circuit control box
8. Adopts original imported control handle
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
Application
hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.
