| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Wakestone |
| Certification: | CE,ISO |
| Model Number: | JSP20 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation ( EXW , FOB or CIF price ) |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Certification: | CE. ISO9001 | Dimension: | 1450*1550*1600 Mm |
|---|---|---|---|
| Composition: | Assistant Hand,main Body, Clip Mouth | Carrier: | 20-30 Ton |
| Type: | Hydraulic Vibratory | Package: | Export Wooden Cases Or As Request |
| Highlight: | Excavator Mounted Hydraulic Vibro Pile Hammer,Hydraulic Vibro Pile Hammer,Sumitomo SH240 Excavator Mounted Vibro Hammer |
||

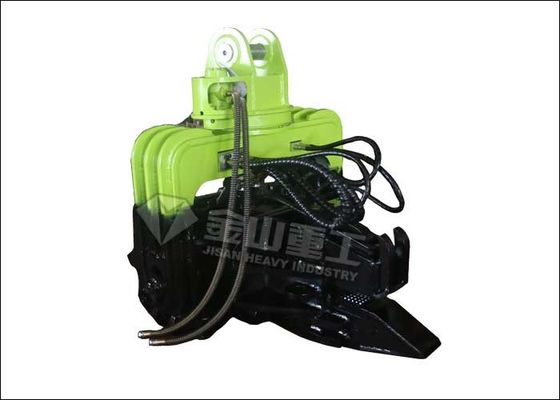

Excavator Mounted Hydraulic Vibro Pile Hammer For Sumitomo SH240 SH300
JISAN company produce wide series of excavator vibratory pile hammer, built and designed for excavators weight from 20 tons to 50 tons, and the clamp can be customized according to the pile size.
Application
Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
