Reliable Quality & Service
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE,ISO |
| Minimum Order Quantity: | 1.00 |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Certification: | CE, ISO9001, SGS | Frequency: | 2800 Rpm |
|---|---|---|---|
| Weight: | 2600 Kg | Suitable Excavator: | 20-30 Ton All Brand Excavator |
| Condition: | 100% New | Package: | Export Wooden Cases Or As Request |
| High Light: | Komatsu Excavator Vibratory Pile Hammer,2800 Rpm Excavator Vibratory Pile Hammer,Excavator Mounted Vibratory Hammer |
||

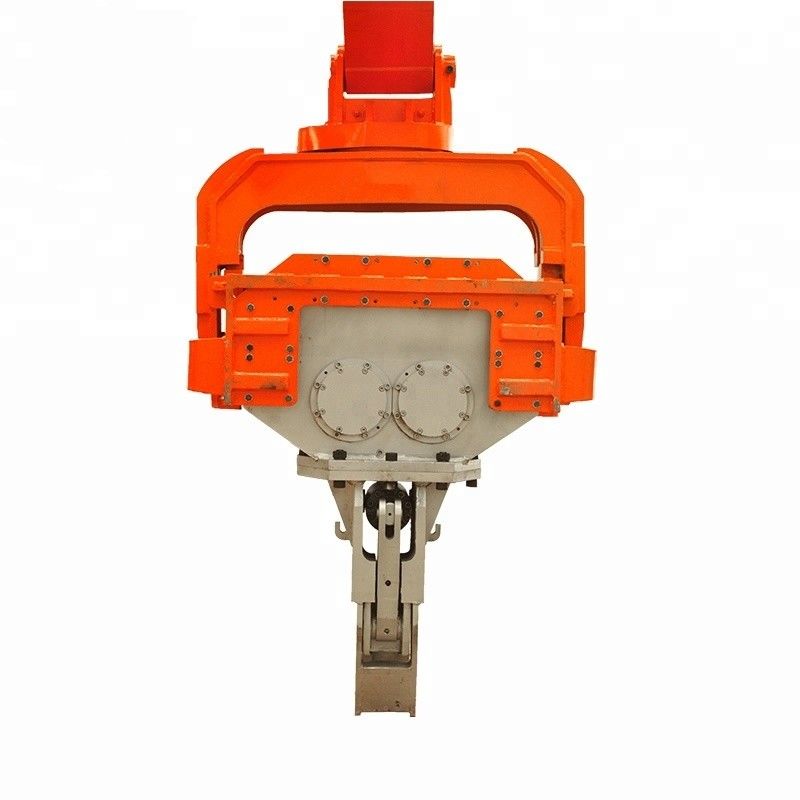

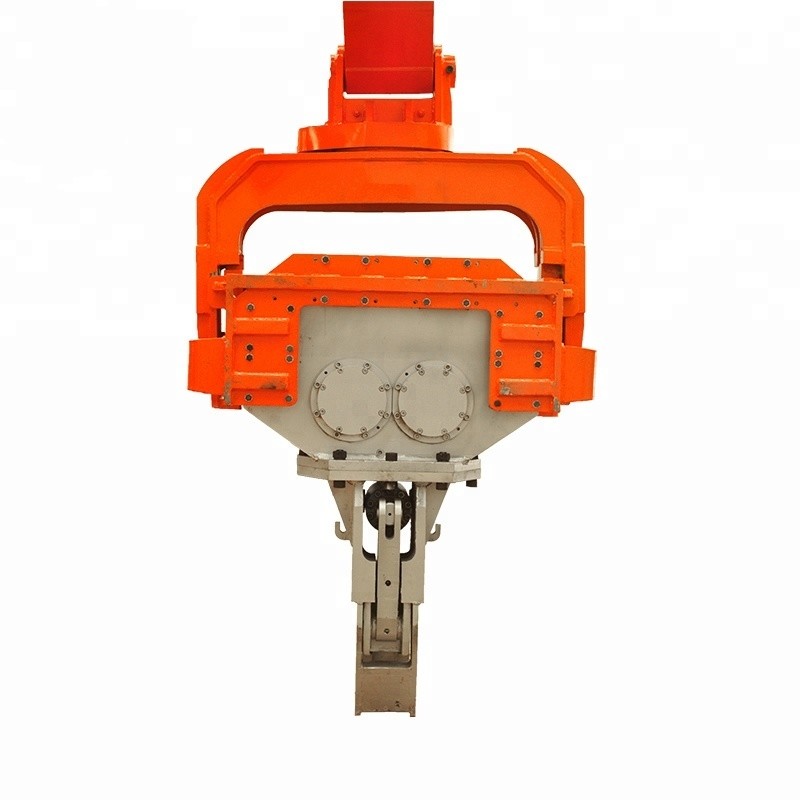

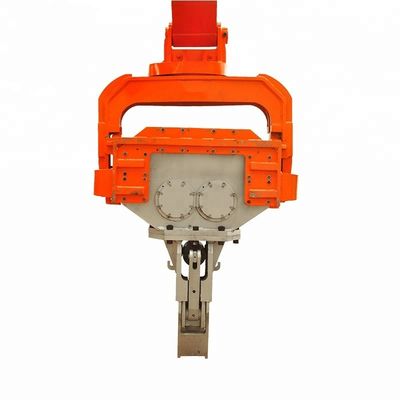

Foundation Machinery Vibratory Pile Hammer For 30 Ton Komatsu Excavator PC300
Excavator mounted vibratory pile hammer JSP20 can be applied for a wide range of working environment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.
WE produce wide series of excavator vibratory pile hammer, built and designed for excavators weighting from 20 tons to 50 tons, and the clamp can be customized according to the pile size.
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
6. Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
