Beijing Silk Road Enterprise Management Services Co.,LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE,ISO |
| Minimum Order Quantity: | 1.00 |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Application: | Round Or Flat Steel Pile, Concret Pile, Steel Pipe. Etc | Long Warranty: | 12 Months |
|---|---|---|---|
| Composition: | Assistant Hand,main Body, Clip Mouth | Carrier: | 20-30 Ton |
| Condition: | 100% New | Package: | Export Wooden Cases Or As Request |
| High Light: | CE Excavator Mounted Vibro Hammer,Hydraulic Excavator Mounted Vibro Hammer,Excavator Vibro Hammer For Sheet Pile Driving |
||

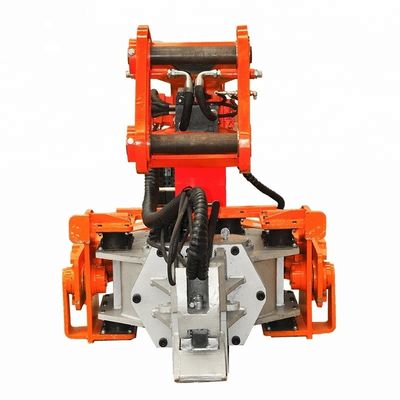

CE Certified Hydraulic Vibratory Pile Hammer For Excavator Sheet Pile Driving
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
Application
Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
