Advantage: | High Frequency, Improve Working Efficiency | Piling Speed: | 6 M/min |
---|---|---|---|
Composition: | Assistant Hand,main Body, Clip Mouth | Suitable Excavator: | 20-30 Ton |
Condition: | 100% New | System: | Hydraulic System |
Highlight: | CAT330 Excavator Vibratory Pile Hammer,CAT320 Excavator Vibratory Pile Hammer,Hydraulic Cylinder Vibratory Pile Hammer |

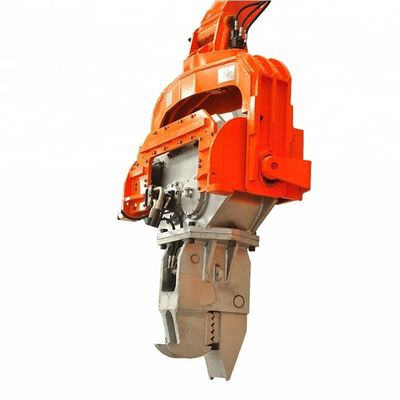

Piling Machine Vibratory Pile Hammer Price For CAT320 CAT330 Excavator
Features
1. Powerful hydraulic cylinder,Super durable tooth piece, add the double pressure protection device to ensure the safety
2. no damage to the bottom or top of steel plate and steel rail pile
3. No damage to the buildings even working frequently nearby
4. Silent work and short construction period, overcome environmental problems
5. Adopts original US imported hydraulic motor to guarantee the efficiency and quality
6. Adopts korean imported damping rubber block
Parameter
ItemModel | Unit | JSP20 | JSP40 | |
Eccentric Moment | Nm | 40 | 85 | |
Frequency | rpm | 2800 | 2800 | |
Centrifugal Force | KN | 300 | 570 | |
Amplitude | mm | 6.8 | 14 | |
Working Pressure | bar | 280 | 300 | |
Oil Flow | L/min | 155 | 255 | |
Max Turning | degree | 270 | 270 | |
Weight | Main Body | kg | 2080 | 2940 |
Extension Boom | kg | 740 | 1070 | |
Total weight | kg | 2900 | 4100 | |
Applicable Excavator | Ton | 20-30 | 35-50 |
Application
hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.
