Speed Valve: | Yes | Warranty: | 14 Months |
---|---|---|---|
Heat Treatment: | Yes | Material: | Q345B, NM400 |
Weight: | 1800 Kg | Color: | Yellow Or As Request |
Highlight: | No Vibration Concrete Pulverizer Attachment,1800Kg Concrete Pulverizer Attachment,Concrete Pulverizer Attachment For Excavator |

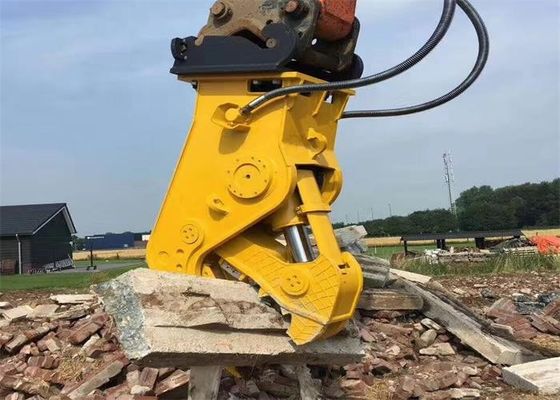

Volvo EC210 Excavator Hydraulic Concrete Pulverizer Secondary Demolition Tools
Introduction
Low noise, no vibration, meet the requirements of environmental protection, which are suitable for city and high-tech zone demolition project.
Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
Features
1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project
Parameter
Item/Model | Unit | JS15S | JS20S | JS25S | |
Suitable Excavator | T | 15 | 18-24 | 35 | |
Weight | Kg | 1320 | 1500 | 1750 | |
Opening Width | Mm | 620 | 760 | 900 | |
Depth | Mm | 700 | 830 | 1000 | |
Height | Mm | 2060 | 2250 | 2620 | |
Width | Mm | 450 | 530 | 620 | |
Length | Mm | 1050 | 1340 | 1580 | |
Rated Pressure | Kgf/cm2 | 320 | 320 | 320 | |
Rated Flow | Lpm | 230 | 240 | 260 | |
Crushing Force | Middle | Ton | 80 | 95 | 120 |
Tip | Ton | 40 | 50 | 65 | |
Cycle Time | Open | Sec | 2 | 2.5 | 2.8 |
Close | Sec | 2.1 | 2.2 | 2.5 |
Application
· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing
Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
Service
1.7Days*24Hours after-sales service by email and phone
2.Your inquiry will be replied in 24 hours during workdays
3.Our customer-oriented sales and technical team are always at your service
4.OEM Service available
5.Warranty: 14 months warranty for hydraulic pulverizer, beyond the warranty period, all spare parts offered to you with our cost price.
