Guangzhou Zhenhui Machinery Equipment Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Wakestone |
| Certification: | CE,ISO |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or pallets |
| Delivery Time: | 5-7 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Sets per month |
| Material: | Q345B, NM400 | Power System: | Hydraulic System |
|---|---|---|---|
| Carrier: | 18-24ton | Color: | Yellow Or As Request |
| Weight: | 1900kg | Application: | Building Demolition, Concrete Crushing |
| High Light: | Building Demolition Mechanical Concrete Pulveriser,Excavator Mechanical Concrete Pulveriser,Concrete Pulveriser For Excavator |
||

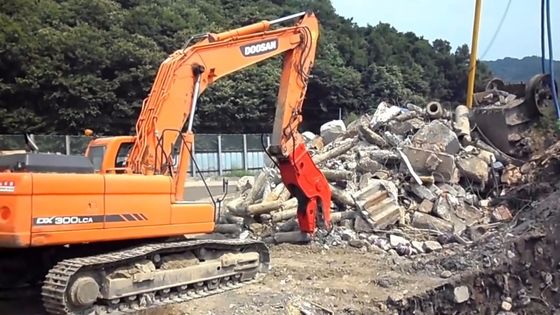

Hydraulic Concrete Scrap Pulveriser For Komatsu PC220 Excavator Construction
Introduction
Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
Features
1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project
Parameter
| Item/Model | Unit | JS15S | JS20S | JS25S | |
| Suitable Excavator | T | 15 | 18-24 | 35 | |
| Weight | Kg | 1320 | 1500 | 1750 | |
| Opening Width | Mm | 620 | 760 | 900 | |
| Depth | Mm | 700 | 830 | 1000 | |
| Height | Mm | 2060 | 2250 | 2620 | |
| Width | Mm | 450 | 530 | 620 | |
| Length | Mm | 1050 | 1340 | 1580 | |
| Rated Pressure | Kgf/cm2 | 320 | 320 | 320 | |
| Rated Flow | Lpm | 230 | 240 | 260 | |
| Crushing Force | Middle | Ton | 80 | 95 | 120 |
| Tip | Ton | 40 | 50 | 65 | |
| Cycle Time | Open | Sec | 2 | 2.5 | 2.8 |
| Close | Sec | 2.1 | 2.2 | 2.5 | |
Application
· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing
Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
