Reliable Quality & Service
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE/ISO |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Film,plywood box,plywood pallet |
| Delivery Time: | Within 30 days |
| Supply Ability: | 10 sets per month |
| Name: | Demolition Shear | Other Name: | Pulverizer,Crusher,Multi-processor |
|---|---|---|---|
| Suitable Excavator: | 20~40 Ton Standard Excavator | Weight: | 2200 Kg |
| Max Cutting Force: | 2250 KN | Blade: | 4 Pcs 4-side Blade |
| High Light: | 2250KN Hydraulic Excavator Shears,Low Noise Hydraulic Excavator Shears,Customized Excavator Hydraulic Shear |
||

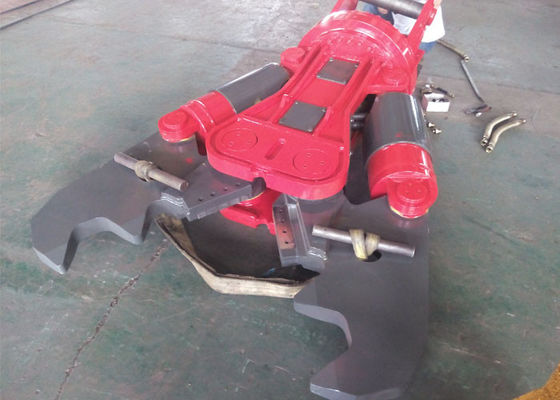

Customized Demolition Shears for CAT375 30 Meter High Reach Boom
Description:
1. Hydraulic demolition shears also called demolition crusher,multi-processor,etc.It’s composed with main body, hydraulic cylinder, movable jaw .The external hydraulic system
offer hydraulic pressure for the hydraulic cylinder to make the two movable jaws open and close to achieve
the effect of crushing concreted walls
2. Mainly function is for both primary and secondary demolition work.
3. It’s low noise, no vibration, meet the requirements of environmental protection, which are Suitable for city
and high-tech zone demolition project.
4. Our demolition shear,both the main-body and jaws are made from hardox450.
5.We use boring machine adjust the precision after welding,to avoid the big tolerance leaded by welding
stress
6. The 2pcs jaws is made from 50mm thick hardox450 steel,much more longer life than cast jaw.
7. The blade of this demolition shear,can cut 30mm-diameter steel rod,can cut 20mm-thick steel sheet.
8. Blade is 2pcs 4-side blade,so have a much more longer life
9. Hydraulic oil cylinder is equipped with a protective cover to obstruct the splash of concrete and
steel debris
10. The grease injection nipples have cover protected,won’t be damaged in rough demolition work
11. We have test this products many years,it’s high performance,durable,convenient to operate,
it’s a proven technology.
Specification:
| Excavator tonnage | 20~40 ton |
| Self Weight | 2200 kg |
| Max Open | 980 mm |
| Max cutting force | 2250 KN |
| Rotate | 360 degree |
|
Oil flow needed for cutting |
190~260L/min |
|
Oil flow needed for rotating |
20L/min |
|
Main body material |
Hardox450 |
|
Jaw material |
Hardox450 |
|
Blade |
2pcs 4 side blade |
Application:
1. Primary demolition work
2. Second demolition work
3. Crush concrete block and push the steel out of concrete
4. meet the requirements of environmental protection, Suitable for city and high-tech zone demolition
project.
