Reliable Quality & Service
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE, ISO |
| Model Number: | JSC02 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or Pallets |
| Delivery Time: | 3-5 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Dimension(L*W*H): | 1350mm*900mm*1060mm | Application: | Construction, Streets With Slope, Dam Slope, Retaining Structure And Drainage Ditch |
|---|---|---|---|
| Motor: | US Imported Motor | Color: | Green Or As Request |
| Weight: | 900 Kg | Main Material: | Q345B, NM400 High Strength Steel |
| High Light: | Vibratory Hydraulic Plate Compactor,IHI Excavator Hydraulic Plate Compactor,1350x900x1060mm Vibratory Plate Compactor |
||

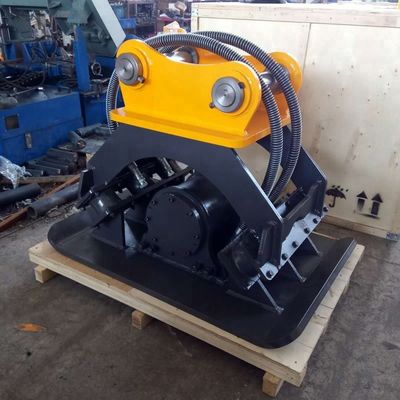

Small Stone Hydraulic Plate Compactor Vibratory Rammer For IHI Excavator
The plate compactor allows you to compact in the trenches without leaving the comfort of the cab.
Applicable to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc. JISAN hydraulic compactor can also be used for pulling piles and broken when necessary.
Product Features
1. import sweden bearing, long durability with lower noise
2. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
3. No pressure adjustment due to a high pressure generating motor
4. import American pike hydraulic vibrating motor, more efficient and reliable
5. Can be customized according to different working site
Parameter
| Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
| Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
| Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
| Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | Kg | 260 | 300 | 500 | 900 | 950 |
| Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
| Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
| Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
The plate compactor enables compacting even in hard to reach areas like down in the trenches and on slopes. Shock mounts distribute vibration evenly while keeping the attachment level, increasing stability and improving compaction efficiency.
FAQ
1. Are you sure that your product will fit my excavator?
Our plate compactor can be adapted to different excavators. Show me your model number, and we can give you best solution.
2. How about the delivery time ?
Within 10 working days after receiving T/T payment.
3. What color can you produce ?
Green ,If you prefer other color, please advise.
