Place of Origin: | China |
---|---|
Brand Name: | Wakestone |
Certification: | CE, ISO |
Model Number: | JSC03 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Export Wooden Cases or as request |
Delivery Time: | 3-5 Workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1500 Sets per year |
Power Of Impulse: | 5 Ton | Number Of Damper: | Four Imported Damper |
---|---|---|---|
Weight: | 300 Kg | Applicable Excavator Brand: | Doosan,Daewoo,Volvo,Hitachi,Kato,Kabelco,Komatsu,Sumitomo,Cat Etc. |
Dimension(L*W*H): | 900*550*760 Mm | Advantage: | High Efficiency, Long Workiing Life |
High Light: | 5 Ton Hydraulic Plate Compactor,Kubota Hydraulic Plate Compactor,Small Vibratory Soil Compactor |

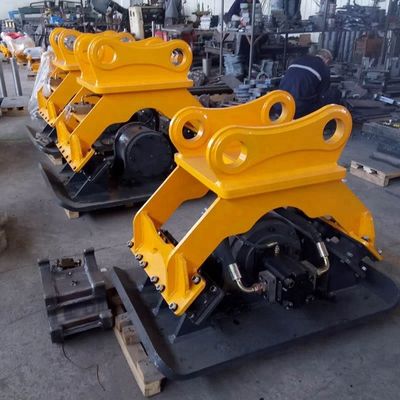

Kubota Small Vibrator Soil Compactor Hydraulic Vibration For 4-9 Ton Excavator
Advantages
1. Using special steel material with high ductility and high abrasion resistance.
2. Using famous imported brand hydraulic vibration motor, sturdy and durable.
3. Reasonable mechanics structure, strong and durable.
4. Using Sweden imported cylindrical roller bearing with low noise, high speed and reliable.
5. Using high strength plate and high wear-resisting board(Hardox) in key parts to guarantee quality.
Technical Parameter
Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | Kg | 260 | 300 | 500 | 900 | 950 |
Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
Product Inspection
1. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2. We will do impact test for every product before delivery.
Why choose us
1. Rich experience in excavator attachments and other parts.
2. We not only sell the products, but also can design as customer's request.
3. We can design and produce a wide range of excavator attachments.
4. Quality is guaranteed by skilled workers, honest employee and QC team.
5. Excellent quality, competitive price & professional service.
