| Place of Origin: | China |
|---|---|
| Brand Name: | Wakestone |
| Certification: | CE, ISO |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or Pallets |
| Delivery Time: | 3-5 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 Sets per year |
| Warranty: | 14 Months | Oil Flow: | 85-105 L/min |
|---|---|---|---|
| After Sales Service: | Yes | Condition: | 100% New |
| Power Of Impulse: | 10 Ton | Application: | Bridge, Road, Street Compaction |
| Highlight: | Soil Hydraulic Plate Compactor,CX160B Excavator Hydraulic Plate Compactor,10 Ton Soil Plate Compactor |
||

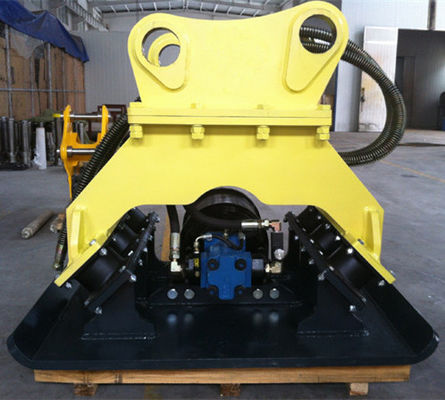

Excavator Mounted Vibrating Soil Plate Compactor For CASE CX130 CX160B
Mounted at the end of an excavator arm, the plate compactor attachment provides more powerful compaction force than a hand-operated compactor. The plate compactor reduces the need for a person working down in the trench, increasing jobsite safety, working efficiency and operator comfort.
The advantages of excavator plate compactor:
1. The Specifications of the compactor are subject to change for improvements.
2. Apply for road construction, foundation & backfill.
3. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power.
4. No pressure adjustment due to a high pressure generating motor.
5. The integrated flow rate and pressure control ensures safety, hydraulic overloading is not possible.
6. Control valve to adjust the speed of motor.
7. Imported damper to prolong working life.
Parameter
| Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
| Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
| Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
| Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | Kg | 260 | 300 | 500 | 900 | 950 |
| Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
| Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
| Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
Package
Inner is stretch film, outside is export wooden case
Delivery
Usually 5-7days (1-5sets) after down payment.
We can arrange ocean or air transportation according to your request from any port of China.
Service
1. We supply all kinds of excavator attachments such as hydraulic breaker,quick hitch,hydraulic shear, excavator grab bucket,hydraulic shear and so on.
2. As a leading manufacturer of hydraulic attachments on excavator and its spare parts,we provide full support to our customers includes competitive price, after-sale services,fast delivery and etc.
