Reliable Quality & Service
| Place of Origin: | China |
|---|---|
| Brand Name: | YYG |
| Certification: | CE, ISO |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Cases or Pallets |
| Delivery Time: | 3-5 Workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Sets per year |
| Height: | 1060 Mm | Carrier: | 20 Ton Excavator |
|---|---|---|---|
| Motor: | US Imported Motor | Color: | Green Or As Request |
| Weight: | 900 Kg | Main Material: | Q345B, NM400 High Strength Steel |
| High Light: | Hitachi Excavator Vibrating Plate Compactor,1060mm Excavator Vibrating Plate Compactor,Vibrating Excavator Compactor Attachment |
||

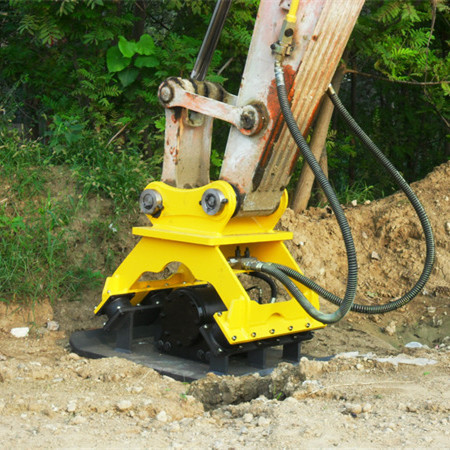

Excavator Vibro Hydraulic Compaction Plate For Hitachi EX200 EX210 EX220
As a leading manufacturer of excavator attachments and hydraulic breaker, we provide full support to our customers includes competitive price, after-sale services, fast delivery and etc.
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
Product Features
1. import sweden bearing, long durability with lower noise
2. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
3. No pressure adjustment due to a high pressure generating motor
4. import American pike hydraulic vibrating motor, more efficient and reliable
5. Can be customized according to different working site
Parameter
| Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
| Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
| Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
| Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | Kg | 260 | 300 | 500 | 900 | 950 |
| Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
| Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
| Width | Mm | 470 | 550 | 700 | 900 | 900 |
