Made From: | Q345B,NM400 High Strength Steel | Suitable Excavator: | 11-16 Ton All Brand Excavators |
---|---|---|---|
OEM Service: | Yes | Condition: | 100% New |
Power Of Impulse: | 10 Ton | Application: | Bridge, Road, Street Compaction |
Highlight: | 10 Ton Hydraulic Plate Compactor,CE Excavator Hydraulic Plate Compactor,NM400 Excavator Compactor Attachment |

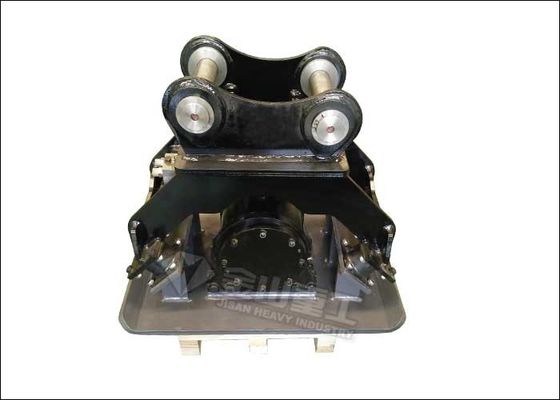

Excavator Attachments Vibro Hydraulic Plate Compactor For SUMITOMO SH120
The plate compactor allows you to compact in the trenches without leaving the comfort of the cab.
Mounted at the end of an excavator arm, the plate compactor attachment provides more powerful compaction force than a hand-operated compactor.
Product Features
1. import sweden bearing, long durability with lower noise
2. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
3. No pressure adjustment due to a high pressure generating motor
4. import American pike hydraulic vibrating motor, more efficient and reliable
5. Can be customized according to different working site
Parameter
Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | Kg | 260 | 300 | 500 | 900 | 950 |
Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
Service
1. We supply all kinds of excavator attachments such as hydraulic breaker,quick hitch,hydraulic shear, excavator grab bucket,hydraulic shear and so on.
2. As a leading manufacturer of hydraulic attachments on excavator and its spare parts,we provide full support to our customers includes competitive price, after-sale services,fast delivery and etc.
Package
Inner is stretch film, outside is export wooden case
Delivery
Usually 5-7days (1-5sets) after down payment.
We can arrange ocean or air transportation according to your request from any port of China.
