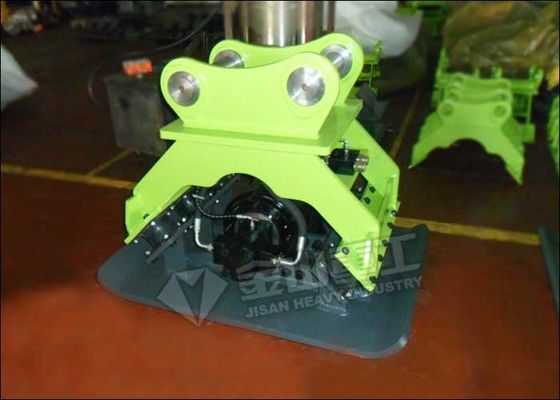

High Frequency Small Vibratory Plate Compactor For Excavators PC200
  • name

High Frequency Small Vibratory Plate Compactor For Excavators PC200

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Export Wooden Cases or Pallets
Delivery Period: 3-5 Workdays
Payment Method: L/C, T/T, Western Union
Supply Capacity: 1000 Sets per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Wakestone
Certification
CE, ISO
Long Warranty:
14 Months Long Warranty
Suitable Excavator:
17-23 Ton All Brand Excavator
After Sales Service:
Yes
Color:
Green Or As Request
Weight:
900 Kg
Main Material:
Q345B, NM400 High Strength Steel
Highlight:

High Frequency Small Vibratory Plate Compactor

,

Excavators PC200 Small Vibratory Plate Compactor

,

Q345B Vibratory Plate Compactor

Product Description



High Frequency Vibrating Hydraulic Plate Compactor For Komatsu Excavator PC200





Product Features



1. import sweden bearing, long durability with lower noise
2. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
3. No pressure adjustment due to a high pressure generating motor
4. import American pike hydraulic vibrating motor, more efficient and reliable
5. Can be customized according to different working site





Parameter



Item/Model Unit JSC02 JSC03 JSC06 JSC08 JSC10
Carrier Ton 1-3 4-9 11-16 17-23 23-30
Power of Impulse Ton 3 5 10 15 15
Maximum vibration frequency Rpm 2000 2000 2000 2000 2000
Oil Flow L/min 30-45 45-75 85-105 120-170 120-170
Pressure Kg/cm2 100-120 100-130 100-130 150-200 150-200
Weight Kg 260 300 500 900 950
Bottom Measurement L*W*T,mm 650*470*16 900*550*25 1160*700*28 1350*900*30 1350*900*30
Height Mm 690 760 920 1060 1100
Width Mm 470 550 700 900 900



Application



Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.



Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.





Product Inspection



1. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2. We will do impact test for every product before delivery.
