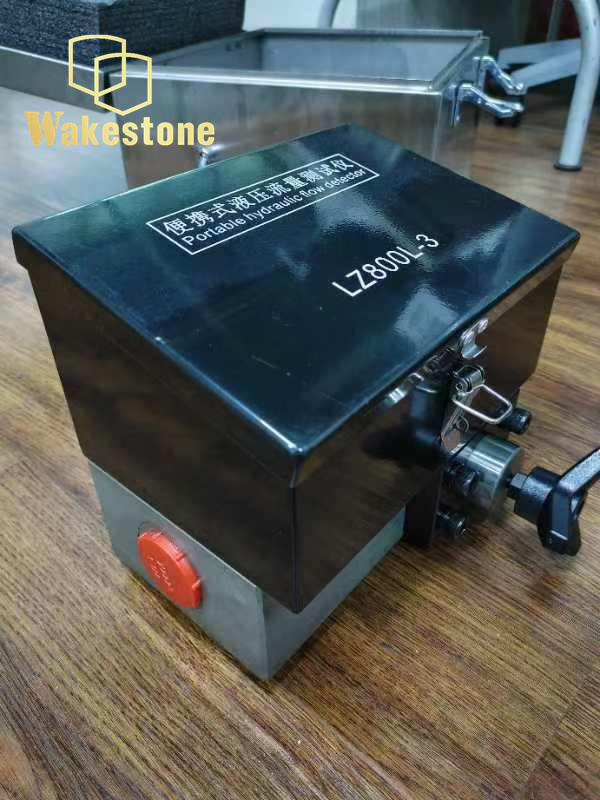

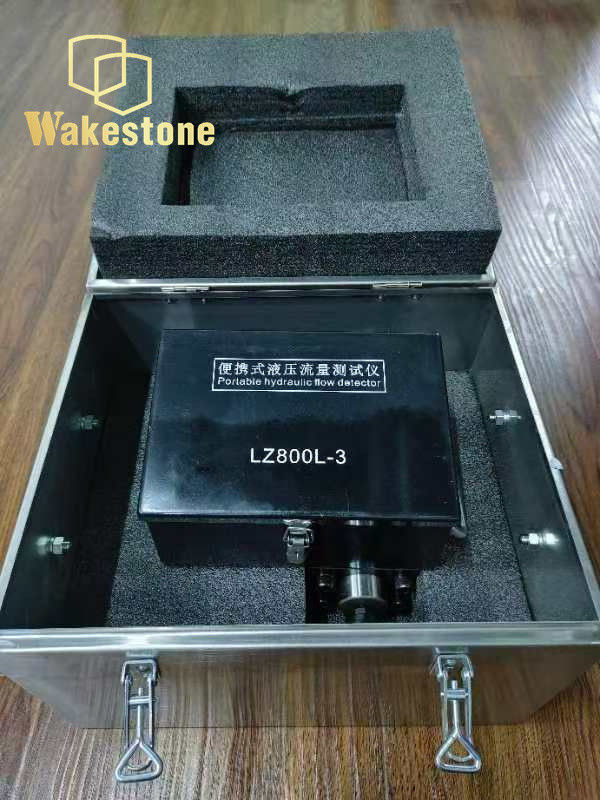

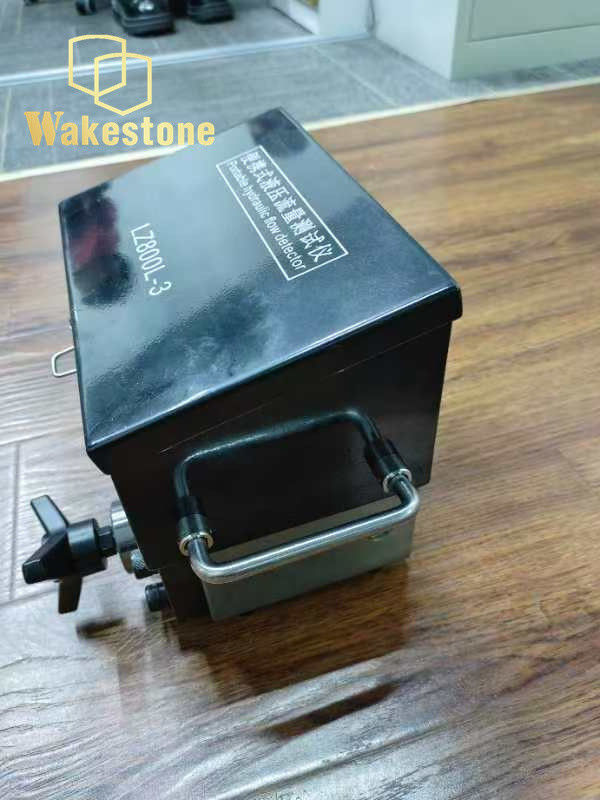

Portable Hydraulic Flow Meter For All Types Of Excavators

Portable Hydraulic Flow Meter For All Types Of Excavators

Specification

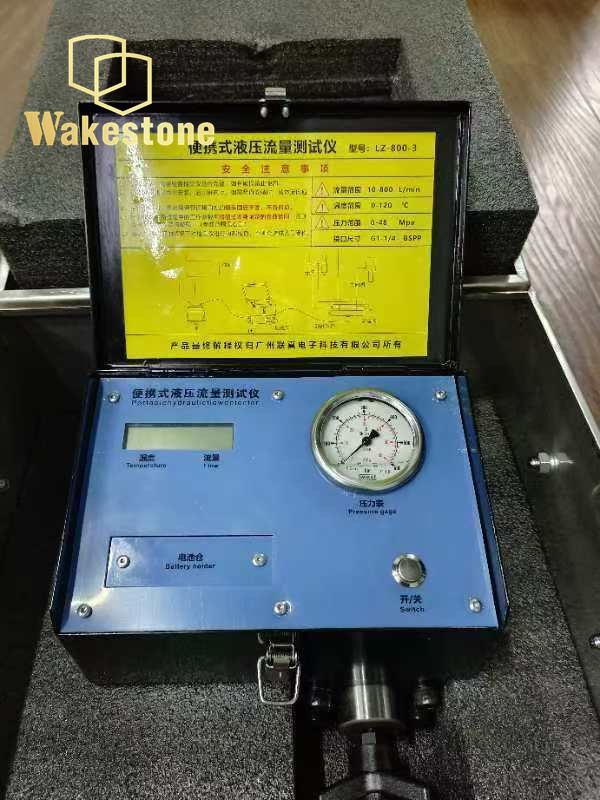

Interface definition:

①Power on button

②Battery holder

③manometer

④Temperature/flow display

Measurement and display Flow rate

This design minimizes the effects of changes in temperature and viscosity with the use of electron counting measurements in an axial turbine.

Accuracy: ± 1%FS

Stress

Built-in pressure sensor, pressure sensor response time is less than 1ms

Accuracy: ±0.5% FS

Structure

Reading display

The LZ-800-3 series tester is a microprocessor-based instrument with display program design.

Refresh the display three times per second. Low power microcircuits minimize battery consumption.

Loading valve

The built-in loading valve is used to simulate the load for loading.

Seal

Viton fluoroprubber seals are standard and compatible with hydraulic oil, water/oil emulsions. EP (ethylene-propylene rubber) seals are suitable for phosphate esters and are available upon request.

Connectors and flanges for different range

flow sensors are available

Temperature

The temperature is measured by the thermistor, the response is fast, and the temperature display unit usage is℃.

Accuracy: ±1℃

Flow meter structure

The turbine with 6 blades is placed inside a high tensile strength aluminum block, and the rotating device is made of stainless steel shafts and bearings. Built-in flow straightener reduces flow disturbance and accurately measures flow in both directions.
