| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Wakestone |
| Certification: | ISO/CE |
| Model Number: | AP3409F |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Individual Paper box+Carton |
| Delivery Time: | 1-10 days |
| Payment Terms: | L/C,, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000PCS per week |
| Product Name: | TCN High Pressure Oil Seal AP3409F | Compatible Equipment Type: | Excavator |
|---|---|---|---|
| Condition: | A Brand-new, | Color: | Black/Customized |
| Material: | Rubber & PTFE & Metal & PU & Stainless Steel & Viton & Fkm & NBR | Size: | 65*90*13 |
| Style: | Hydraulic, Mechanical Seal, Other, Oil Seal, Hydraulic Cylinder Seal Kit | Stock:: | In Stock |
| Highlight: | High Pressure Excavator Seal Kit,TCN Excavator Seal Kit,Long-Lasting Durability Excavator Seal Kit |
||

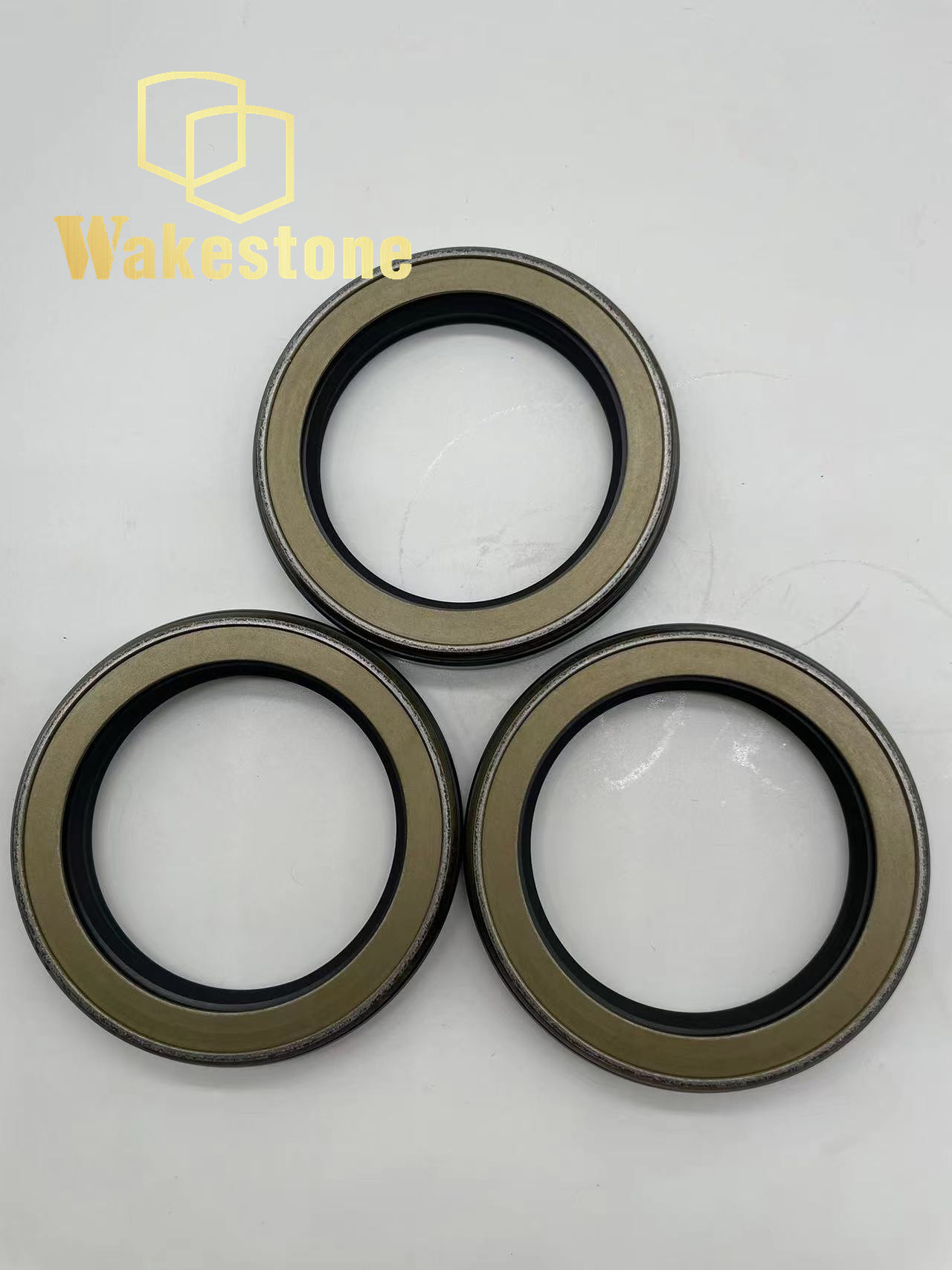

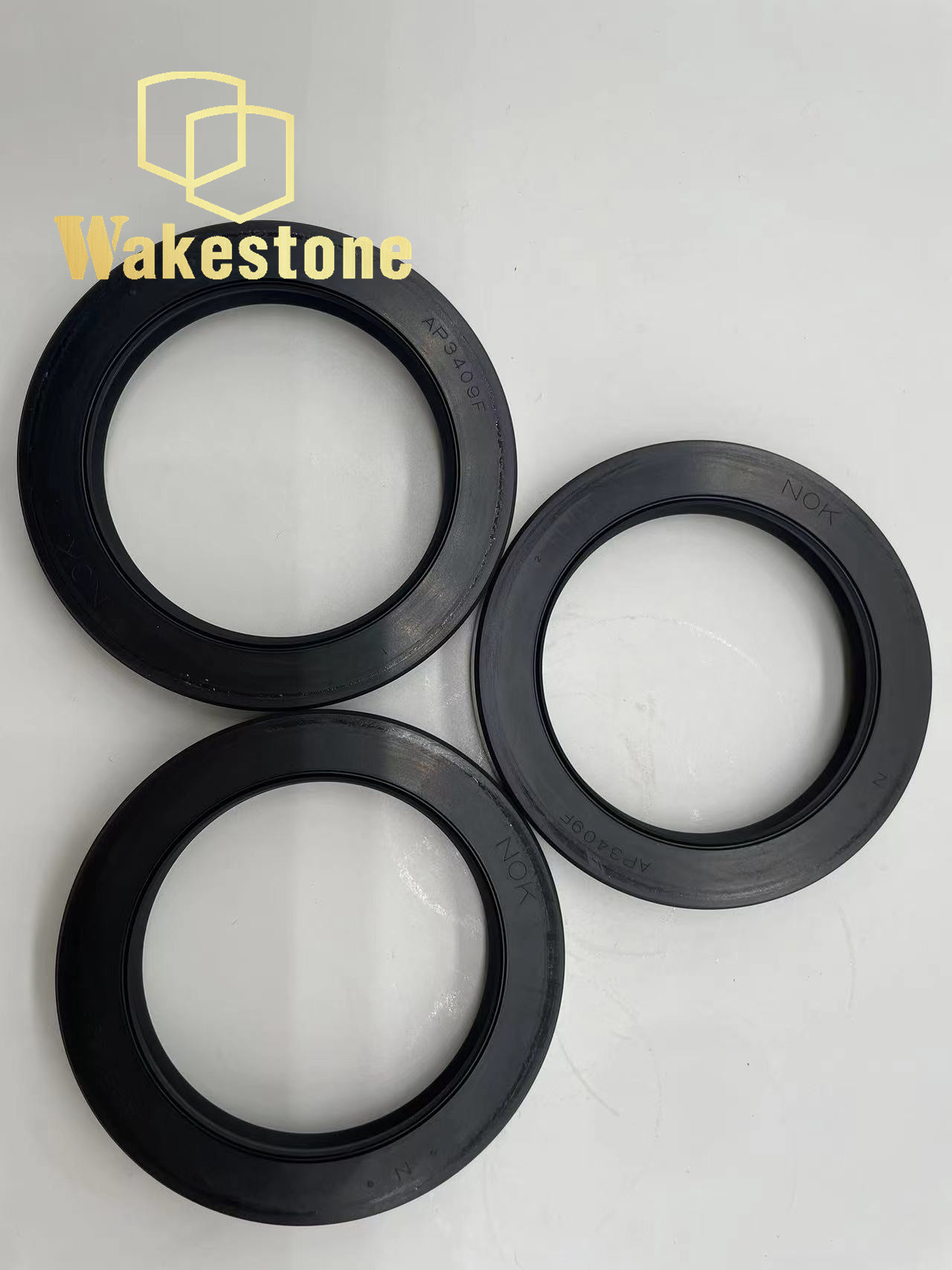

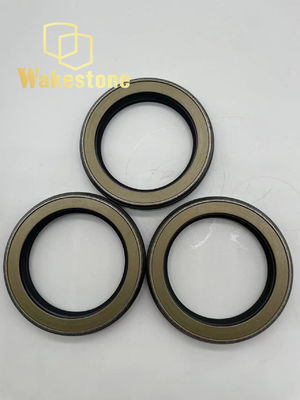

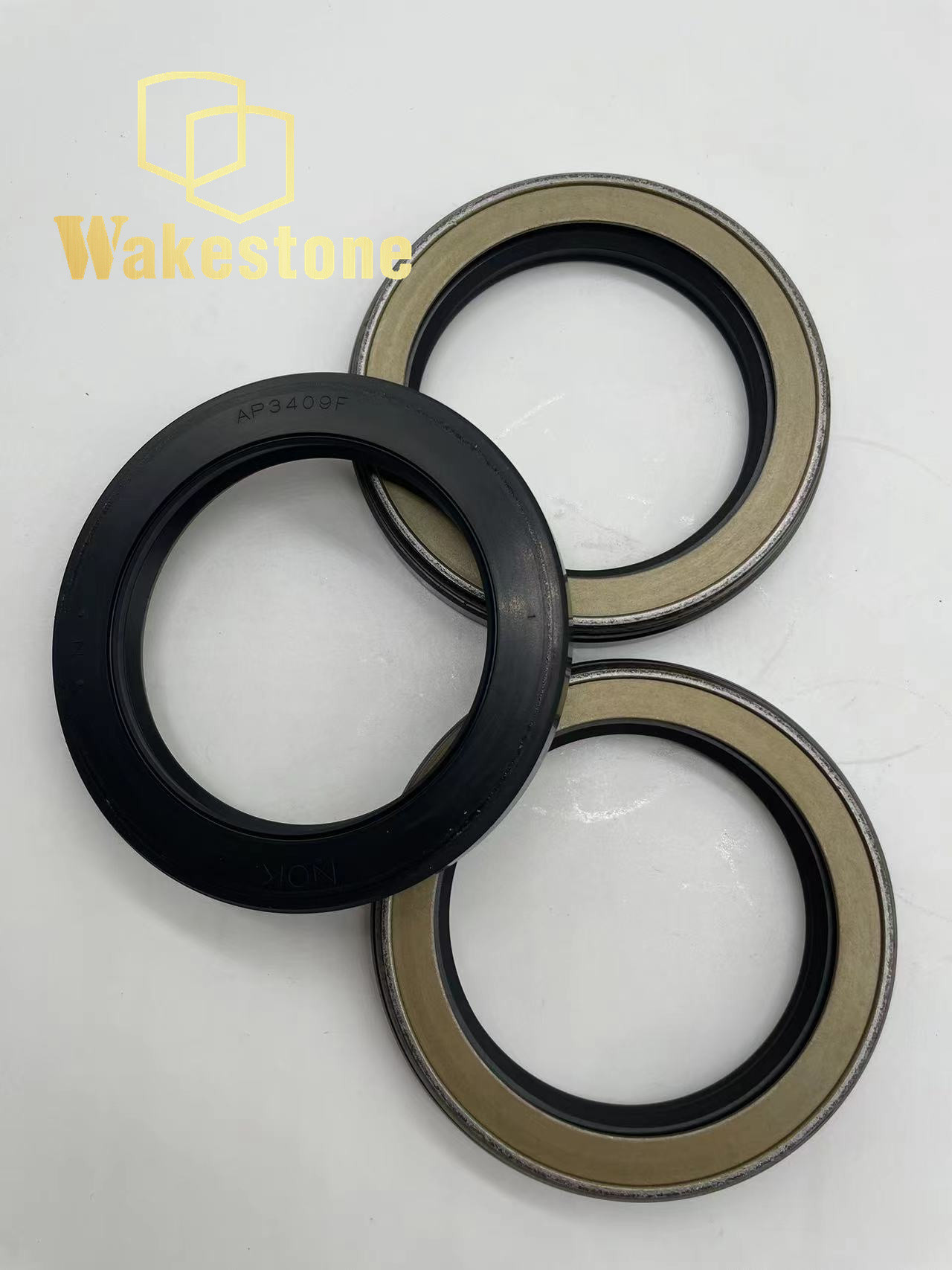

High Pressure Oil Seal TCN For Excavator Seal Kit AP3409F For Long-Lasting Durability
Specification:
| Specification | Description |
| Product Model | AP3409F |
| Applicable Mode | Excavator |
| Inner Diameter (mm) | 650 |
| Outer Diameter (mm) | 900 |
| Thickness(mm) | 13 |
| Material | NBR(Nitrile Butadiene Rubber |
| Operating Temperature Range |
-30℃ to 120℃ |
| Operating Pressure Range |
0.05 MPa to 0.35 MPa |
| Service Life | Dependent on working conditions and maintenance |
| Key Features | Abrasion resistance,oil resistance,high-temperature resistance,suitable for harsh conditions |
Oil Seal High Pressure Oil Seal TCN
Basic Information
Oil seal for pressurized work. Pressure-resistant oil seal with auxiliary cage minimizes lip deformation under pressure.
For high pressure rotating shafts.
TCN oil seal is a mechanical component used to seal oil. The TCN skeleton oil seal isolates the parts that need lubrication in the transmission components from the output components, and does not allow lubrication and leakage.
Applications of TCN oil seals: sealing of hydraulic pumps, traveling pumps, rotary pumps, and vertical shafts. Especially hydraulic pump motors, these pumps are commonly used in road rollers, scrapers, shovel loaders, dump trucks, mixers, excavators, etc.
| No | OEM | No | OEM | NO | OEM | No | OEM |
| 1 | AP0760 | 21 | AP2086F | 44 | AP3154H | 64 | AP4399E |
| 2 | AP0787 | 22 | AP2083G | 45 | AP3211E | 65 | AP4451G |
| 3 | AP0875 | 23 | AP2083E | 46 | AP3220 | 66 | AP4498E |
| 4 | AP1013E | 24 | AP2240G | 47 | AP3222B | 67 | AP4542F |
| 5 | AP1033I | 25 | AP2388E | 48 | AP3297 | 68 | AP4581G |
| 6 | AP1147F | 26 | AP2379F | 49 | AP3400 | 69 | AP4624G |
| 7 | AP1148F | 27 | AP2390Q | 50 | AP3409F | 70 | AP4700 |
| 8 | AP1260E | 28 | AP2507H | 51 | AP3461E | 71 | AP4713G |
| 9 | AP1325 | 29 | AP2653 | 52 | AP3527B | 72 | AP4795F |
| 10 | AP1336E | 30 | AP2659E | 53 | AP3618G | 73 | UP0234E |
| 11 | AP1338F | 31 | AP2666 | 54 | AP3744K | 74 | UP0445E |
| 12 | AP1884 | 32 | AP2668G | 55 | AP3842H | 75 | UP0449E |
| 13 | AP7615 | 33 | AP2775G | 56 | AP3932B | 76 | UP0450E |
| 14 | AP1563J | 34 | AP2791G | 57 | AP3919 | 77 | BP1518 |
| 15 | AP1665E | 35 | AP2861 | 58 | AP3994B | 78 | BP4561E |
| 16 | AP1706E | 36 | AP2864I | 59 | AP4063B | 79 | BP3411E |
| 17 | AP1709H | 37 | AP2967J | 60 | AP4153H | 80 | BP3054 |
| 18 | AP1904F | 38 | AP2965E | 61 | AP4212B | 81 | BP0494 |
| 19 | AP1978G | 39 | AP3053 | 62 | AP4282G | 82 | BP2777E |
| 20 | AP2085G | 40 | AP3055F | 63 | AP4346B | 83 | XP0803 |
|
All models can be customized |
|||||||
Q: What is excavator frame oil seal AP3409F?
A: Excavator frame oil seal AP3409F is a seal used in the hydraulic system of excavators. It is mainly used to prevent hydraulic oil leakage and dust.
Q: Why do you need to buy excavator frame oil seal AP3409F?
A: Excavator frame oil seal AP3409F is a key component of the excavator hydraulic system. It can effectively prevent hydraulic oil leakage and dustproof, ensure the normal operation of the hydraulic system and extend the service life of mechanical parts.
1. The brand and model of the excavator;
2. The specifications and dimensions of the skeleton oil seal (usually determined by parameters such as inner diameter, outer diameter and thickness);
3. Working conditions and environment of the excavator hydraulic system.
Q: In addition to purchasing, are there any other things to note?
A: Before purchasing the excavator frame oil seal AP3409F, make sure you clearly understand the following matters:
1. Confirm the quality and authenticity of the product and avoid purchasing fake and shoddy products;
2. Pay attention to the product warranty period and after-sales service;
3. Follow the usage and installation instructions to ensure proper use and installation of the skeleton oil seal.
