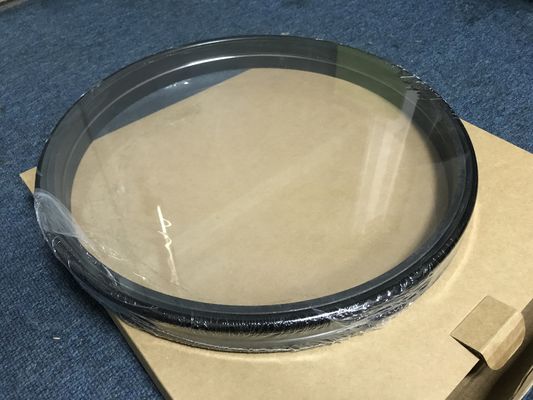

62HRC Floating Oil Seal
  • name
  • name

62HRC Floating Oil Seal

Standard Packaging: Paper Box
Delivery Period: 3 workdays
Payment Method: L/C, T/T
Supply Capacity: 10000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Wakestone
Model Number
Wakestone
Material:
Rubber
Style:
Mechanical Seal
Application:
Excavator
Life-span:
5000HRS
Hardness:
58-62HRC
Feature:
Oil Resistance
Highlight:

62HRC Floating Oil Seal

,

5000HRS Floating Oil Seal

,

Oil Resistance Final Drive Seal Kit

Product Description

Oil Seal Group Excavator Final Drive Seal Floating Oil Seal For PC400, VLV360, EX400





1.Description:

*Oil seal group Excavator final drive seal group

2.Floating seal Application Fields

*Construction equipment

*Excavator

*Bulldozer

*Sortingmachine

*Skidder

*Dump truck

*Wheel loader

*Hydraulic equipment

*Hydraulic cutter*Tunnel excavator



3.Material

*Rubber+SPCC



4.Details & Advantage

*Design a reliable.

*Effective packer outside dust, water, dirt and protected within the lubricating oil and grease.

*Low cost, high efficiency.

*Longer service life.



5.Installation:

a).Completely clear cavity and seal, remove oil, dirt, grease, metal debris such as residue.

b).Only can remove the seal from the packaging before installation, so that we can prevent damage of grinding surface.

c).Confirm whether the rubber ring close to the metal rings inside of the edge.

d).Installing half seals into the chamber (rubber ring and metal ring), and then check the position of seals, rubber rings must be parallel to the bottom of the cavity.

e).After installed the half seal, use Lint-free cloth to wipe the two metal surfaces, applied in a thin layer on the sealing surface of the film (the internal use of oil), pay attention only to lubricate the seal surface.

f).Put on the other half ,then check whether it is up to specification.



Specification



  Type Inner Dia. Outer Dia. Rubber Dia. Thickness
1 Wakestone3870 387 415 419.5 38
2 Wakestone3810 381 405 412 40
3 WakestoneG3660 366 394 400.7 38
4 Wakestone3560 356 381 390 38
5 Wakestone3400 338 368 375 40
6 Wakestone3350 335 368 373 40
7 Wakestone3180 318 347 352.2 38
8 Wakestone2980 298 328 333 42
9 Wakestone2940 294 328 333 40
10 Wakestone284AB 250 277 284.6 22
247 284   13
11 Wakestone2800 280 310 315.5 40
12 Wakestone2750 275 303 308 38
13 Wakestone2650 265 293 298 38
14 Wakestone2600AB 209 234 242.6 21
216 260   13.5
15 Wakestone2600A 260 288 298 40
16 Wakestone2600 260 288 295 40
17 Wakestone2500 250 277 284.6 44
18 Wakestone249AB 250 277 284.6 22
248 290   13
19 Wakestone2400 239 268 277 40
20 Wakestone2390 239 268 274.2 42





62HRC Floating Oil Seal 062HRC Floating Oil Seal 1
