| Place of Origin: | China |
|---|---|
| Brand Name: | Wakestone |
| Certification: | CE,ISO |
| Model Number: | WSTB10 WSTB20 WSTB30 WSTB40 WSTB43 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, T/T |
| Length: | 2089 Mm | Width: | 508 Mm |
|---|---|---|---|
| Impact Frequency: | 350-650 Bpm | Diameter Of Chisel: | 125 Mm |
| Length Of Tool: | 1130 Mm | Body Weight: | 620 Kgs |
| Highlight: | hydraulic rock hammer,hydraulic breaker hammer |
||

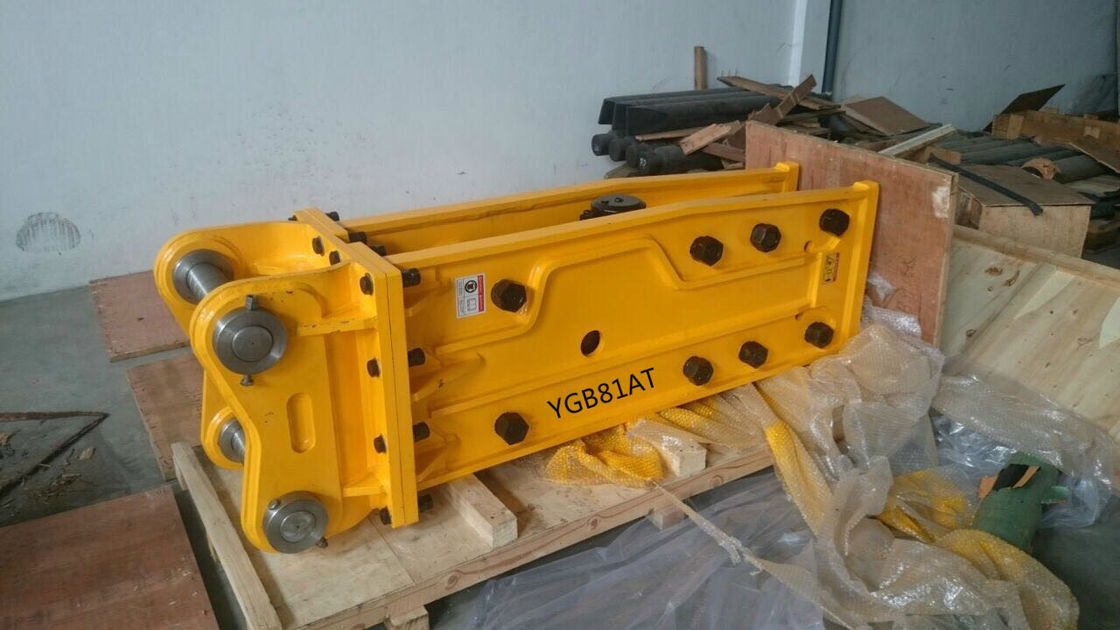

Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
"broken hammer" or ''breaker".Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type.
| Description | Unit | WSTB10 | WSTB20 | WSTB30 | WSTB35 | WSTB40 | WSTB43 |
| Applicable Carrier | ton | 0.8~2.5 | 1.2~3.0 | 2.5~4.5 | 3.0~5.5 | 4.0~7.0 | 6~9 |
| Overall Weight | lb | 154 | 198 | 265 | 397 | 551 | 838 |
| kg | 70 | 90 | 120 | 180 | 250 | 380 | |
| Overall Length | in | 38.3 | 42.2 | 45.2 | 48.8 | 53.1 | 63.7 |
| mm | 972 | 1071 | 1147 | 1239 | 1349 | 1618 | |
| Required Oil Flow | gal/min | 4~8 | 5.3~10.6 | 6.6~13.2 | 7.9~16 | 10.6~18.5 | 13.2~23.8 |
| ℓ/min | 15~30 | 20~40 | 25~50 | 30~60 | 40~70 | 50~90 | |
| Operating Pressure | psi | 1,280~1,707 | 1,280~1,707 | 1,280~1,707 | 1,422~1,849 | 1,565~1,991 | 1,707~2,134 |
| ㎏/㎠ | 90~120 | 90~120 | 90~120 | 100~130 | 110~140 | 120~150 | |
| Impact Rate | bpm | 800~1400 | 700~1200 | 600~1100 | 500~1000 | 500~900 | 400~800 |
| Hose Diameter | in | 3/8,1/2 | 3/8,1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Tool Diameter | in | 1.6 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
| mm | 40 | 45 | 53 | 60 | 68 | 75 |
