Place of Origin: | China |
---|---|
Brand Name: | YYG |
Certification: | CE,ISO |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Export Wooden Cases or pallets |
Delivery Time: | 5-7 Workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 Sets per month |
Length: | 1340mm | Warranty: | 14 Months |
---|---|---|---|
OEM Service: | OEM & ODM Service Available | Material: | Q345B, NM400 |
Color: | Yellow Or As Request | Application: | Building Demolition, Concrete Crushing |
High Light: | Rotating Hydraulic Concrete Pulveriser,Excavator Hydraulic Concrete Pulveriser,Hitachi ZX200 Excavator Concrete Muncher |

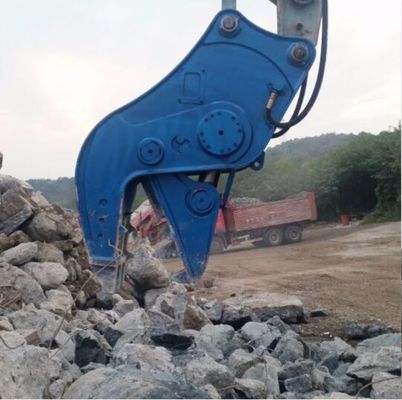

Rotating Hydraulic Concrete Pulverizer For Hitachi Excavator ZX200 ZX220
Application
· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing
Introduction
Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
Features
1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project
Parameter
Item/Model | Unit | JS15S | JS20S | JS25S | |
Suitable Excavator | T | 15 | 18-24 | 35 | |
Weight | Kg | 1320 | 1500 | 1750 | |
Opening Width | Mm | 620 | 760 | 900 | |
Depth | Mm | 700 | 830 | 1000 | |
Height | Mm | 2060 | 2250 | 2620 | |
Width | Mm | 450 | 530 | 620 | |
Length | Mm | 1050 | 1340 | 1580 | |
Rated Pressure | Kgf/cm2 | 320 | 320 | 320 | |
Rated Flow | Lpm | 230 | 240 | 260 | |
Crushing Force | Middle | Ton | 80 | 95 | 120 |
Tip | Ton | 40 | 50 | 65 | |
Cycle Time | Open | Sec | 2 | 2.5 | 2.8 |
Close | Sec | 2.1 | 2.2 | 2.5 |
Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
