ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom

China ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom supplier
ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom supplier ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom supplier ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom supplier ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom supplier

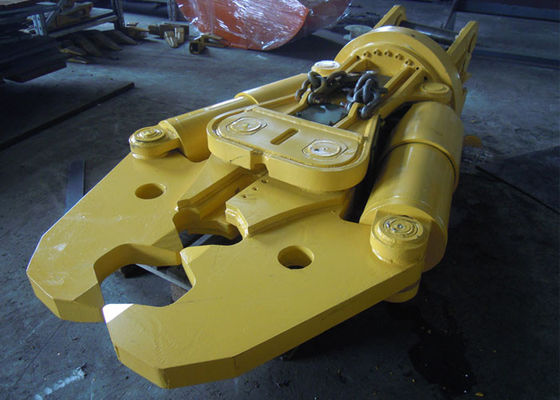

Large Image :  ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom

Product Details:

Place of Origin: China
Brand Name: YYG
Certification: CE/ISO

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Film,plywood box,plywood pallet
Delivery Time: Within 30 days
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Demolition Shear,Crusher,Pulverizer Suitable Excavator: 20~40 Ton Standard Excavator
Max Open: 980 Mm Max Cutting Force: 2250 KN
Weight: 2200 Kg Jaw Material: 80mm Thick Hardox450

ISO Proved Excavator Shear Attachment For Komatsu PC300-7 Standard Boom





Specification:



Excavator tonnage 20~40 ton
Self Weight 2200 kg
Max Open 980 mm
Max cutting force 2250 KN
Rotate 360 degree

Oil flow needed for cutting

190~260L/min

Oil flow needed for rotating

20L/min

Main body material

Hardox450

Jaw material

80mm thick Hardox450

Blade

2pcs 4 side blade

Rotate motor two stage planetary reducer hydraulic pump





Description:



      Hydraulic demolition shears also called demolition crusher,multi-processor,etc.It’s composed with main

body, hydraulic cylinder, movable jaw .The external hydraulic system offer hydraulic pressure for the

hydraulic cylinder to make the two movable jaws open and close to achieve the effect of crushing

concreted walls.Mainly function is for both primary and secondary demolition work.





       It’s low noise, no vibration, meet the requirements of environmental protection, which are Suitable for

city and high-tech zone demolition project.



Our Demoliton crusher shear have follow advantages:

1. Both the main-body and jaws are made from  hardox450,structure is high performance

2. The 2pcs jaws is made from 80mm thick hardox450 steel,much more longer life than cast jaw.

3. We use boring machine adjust the precision after welding,to avoid the big tolerance leaded by welding

stress.

4. Blade is 2pcs 4-side blade,so have a much more longer life

5. The blade of this demolition shear,can cut 30mm-diameter steel rod,can cut 30mm-thick steel sheet.

6. Rotate motor is two stage planetary reducer hydraulic pump,much more higher rotate speed,better than worm gear pump.

7. Hydraulic oil cylinder is equipped with a protective cover to obstruct the splash of concrete and

steel debris.

8. The grease injection nipples have cover protected,won’t be damaged in rough demolition work.







Application:



1. Demolishing buildings

2. Demolition which need lower noise.
