Place of Origin: | China |
---|---|
Brand Name: | YYG |
Certification: | CE, ISO |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Export Wooden Cases or Pallets |
Delivery Time: | 3-5 Workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000 Sets per year |
Width: | 550 Mm | Warranty: | 14 Months |
---|---|---|---|
Certification: | ISO9001, CO, CE | Color: | Green Or As Request |
Weight: | 900 Kg | Quality Control:: | ISO Certified,100% Inspection Before Delivery |
High Light: | Hydraulic Slope Plate Compactor,550mm Slope Plate Compactor,Excavator Mounted Slope Vibratory Compactor |

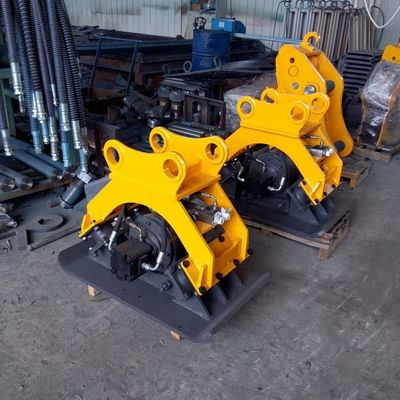

Excavator Mounted Hydraulic Vibration Plate Slope Compactor Ground Compaction
Product Features
1 .Original imported motors to be more efficient and stable.
2. Original imported valves that are safe and reliable, easy for control.
3. Damping rubber to be more lasting and durable.
4. import sweden bearing, long durability with lower noise
5. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
6. No pressure adjustment due to a high pressure generating motor
7. Can be customized according to different working site
Parameter
Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | Kg | 260 | 300 | 500 | 900 | 950 |
Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Applied to any position,such as horizon compaction,step compaction,bridge abutment,the trench pit compaction,sub grade compaction,the corner turning point,backfill compacted,concrete pavement patching compacted,tube side compaction etc.
JISAN hydraulic compactor can also be used for pulling piles and broken when necessary.
FAQ
1. Are you sure that your product will fit my excavator?
Our plate compactor can be adapted to different excavators. Show me your model number, and we can give you best solution.
2. How about the delivery time ?
Within 10 working days after receiving T/T payment.
3. What color can you produce ?
Green ,If you prefer other color, please advise.
