Place of Origin: | China |
---|---|
Brand Name: | YYG |
Certification: | CE, ISO |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Export Wooden Cases or Pallets |
Delivery Time: | 3-5 Workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000 Sets per year |
Vibration Frequency: | 2000 Rpm | Certification: | CE, SGS, ISO9001 |
---|---|---|---|
Advantage: | More Economic, Improve Working Efficiency | Color: | Green Or As Request |
Weight: | 900 Kg | OEM Service: | Available |
High Light: | Hyundai R220 Hydraulic Plate Compactor,2000Rpm Hydraulic Plate Compactor,Excavator Hydraulic Vibration Compactor |

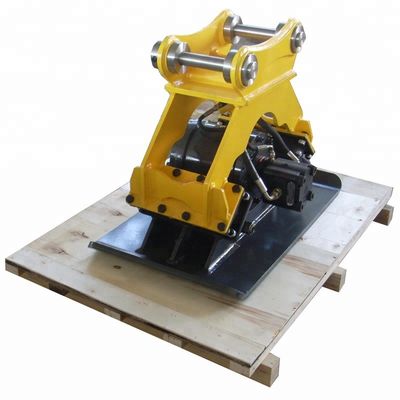

Hydraulic Vibration Compactor Plate Machine For Hyundai R220 R250 Excavator
Advantages
1. Strong frequency vibration
2. Made from wear-resistant steel,
3. Operator can control the vibration frequency
4. big compaction area, high efficiency
5. Original Imported Motors to be more efficient and dense.
6. Original Imported Valves that are safe ,reliable and easy to control.
7. Damping Rubber, more durable.
Parameter
Item/Model | Unit | JSC02 | JSC03 | JSC06 | JSC08 | JSC10 |
Carrier | Ton | 1-3 | 4-9 | 11-16 | 17-23 | 23-30 |
Power of Impulse | Ton | 3 | 5 | 10 | 15 | 15 |
Maximum vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
Oil Flow | L/min | 30-45 | 45-75 | 85-105 | 120-170 | 120-170 |
Pressure | Kg/cm2 | 100-120 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | Kg | 260 | 300 | 500 | 900 | 950 |
Bottom Measurement | L*W*T,mm | 650*470*16 | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
Height | Mm | 690 | 760 | 920 | 1060 | 1100 |
Width | Mm | 470 | 550 | 700 | 900 | 900 |
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
